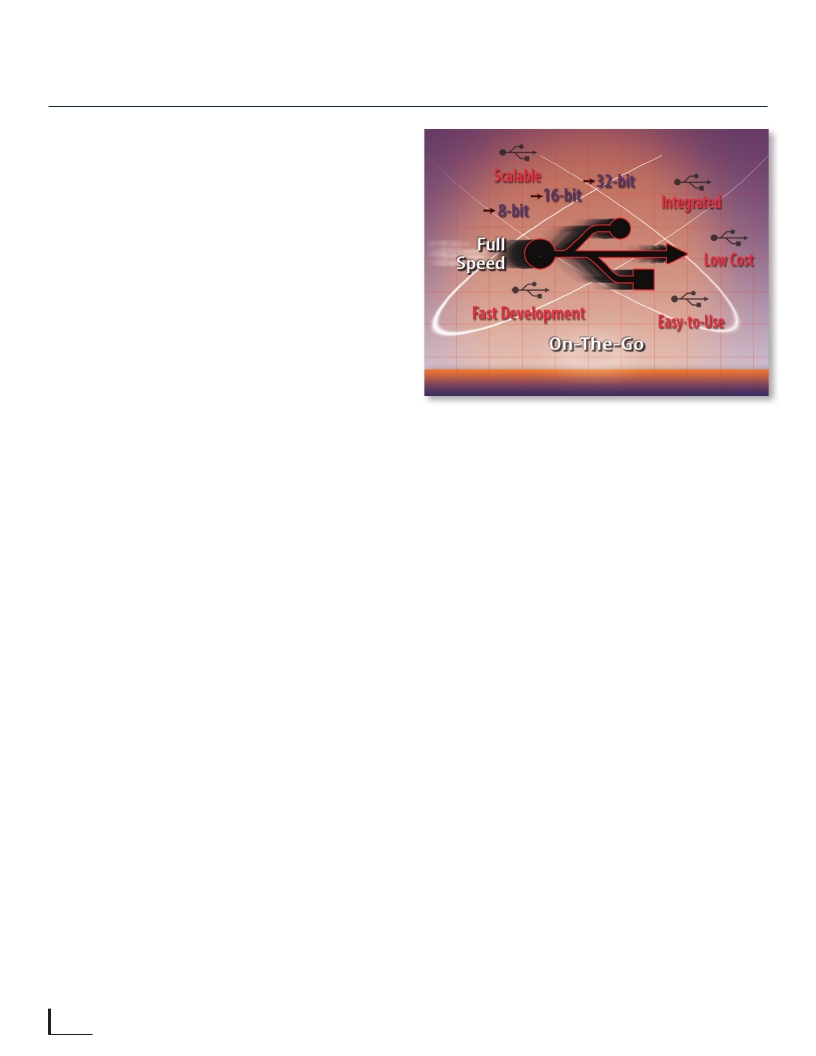

Scalable and Integrated Solutions

Full-Speed USB and USB On-the-Go

Consumers’ desire for more engaging, easy-to-use and

upgradeable products is driving embedded designers to

add USB capabilities to their designs.

Microchip provides designers with a scalable choice of

integrated USB solutions across 8-, 16- and 32-bit PIC?

microcontrollers ranging from the space-saving 14-pin

devices to the feature-rich 100-pin USB On-the-Go (OTG)

products. This allows simple, compact designs to easily

grow to more capable designs as requirements demand.

In addition, Microchip offers highly configurable stand-

alone USB protocol converters that enable full-speed USB

connectivity in applications with a UART or SPI interface.

Microchip provides free source code for USB software

stacks and class drivers to shorten development time for

USB applications, including thumb drive boot loaders and

printer support. Supported classes include: audio, CDC,

HID, MSD, printer and custom. Microchip’s free USB host

stack, device stack and class drivers are available at:

www.microchip.com/usb .

PIC16F and PIC18F Family

■ Full-speed USB Device mode

■ 8–128 KB Flash, 512B-4 KB of RAM,

■ Up to 16 MIPS 8-bit devices

■ Up to 4 UARTs, 2 I 2 C?/SPI ports

■ Available in 14/20/28/44/64/80/100-pin packages

PIC24E Family

■ Full-speed USB Device, Host and OTG modes

■ 256–512 KB Flash, 32-52 KB RAM,

70 MIPS 16-bit devices

■ 4 UARTs, 2 I 2 C, 4 SPI ports with DMA

■ Available in 64/100/144-pin packages

PIC32 Family

■ Full-speed USB Device, Host and OTG Modes with

dedicated DMA Channels

■ 16–512 KB Flash, 4-128 KB RAM,

40 or 80 MHz MIPS? M4K? Core

■ Up to 6 UARTs, 5 I 2 C and 4 SPI ports,

up to 8 general purpose DMA channels

■ Available in 28/36/44/64/100-pin packages

PIC24F Family

■ Full-speed USB Device, Host and OTG modes

■ 32–256 KB Flash, 8-96 KB RAM,

16 MIPS 16-bit devices

■ Up to 4 UARTs, 3 I 2 C and 3 SPI ports,

DMA interface for data RAM access, display drivers

■ Available in 28/44/64/80/100-pin packages

dsPIC33E Family

■ Full-speed USB Device, Host and OTG modes

■ 256–512 KB Flash, 32-52 KB RAM,

70 MIPS 16-bit devices

■ 4 UARTs, 2 I 2 C and 4 SPI ports with motor control and

digital power peripherals

■ Available in 64/100/144-pin packages

Stand-alone USB Controllers

■ MCP2200 USB-to-UART Protocol Converter

■ MCP2210 USB-to-SPI Protocol Converter

■ USB 2.0 Full Speed

■ On-board EEPROM, GPIO, highly configurable,

small packaging

2

Connectivity Solutions

www.microchip.com/usb
